BASE PROFILE 50 mm - 50x100 BASE EXTRUSION (A01-2)

Reference Number A01-2-02-02/200
Kanya Produkte Detaillierungsgrad Level of Detail: High  |  Level of Detail: Low

Description

This base extrusion is normally used for cross-beams. Further, its optimised cross section means that it is ideal for an extremely wide range of applications.

Catalogue Page (PDF)Extrusion machining information (PDF)

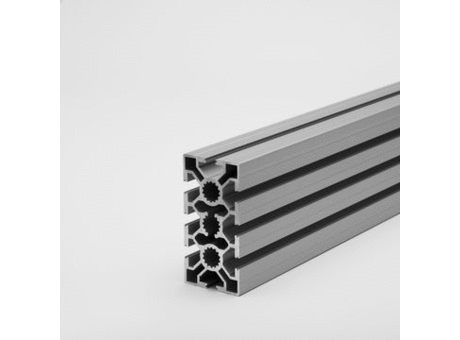

Kanya - BASE PROFILE 50 mm - 50x100 BASE EXTRUSION

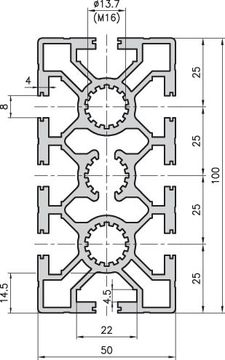

Dimensional Drawing

Product selection

ReferenceIx (cm⁴)Iy (cm⁴)Wx (cm³)Wy (cm³)Cross-section area (cm²)Weight (kg/m)
A01-2149.8441.2529.9716.516.844.6
More products - DescriptionMore products - Part number
50x100 HEAVY DUTY EXTRUSIONMA1-2
50x100 FACE EXTRUSIONMA1-4
Matching accessories - DescriptionMatching accessories - Part number
CONNECTORA20-90
THREADED PLATEAC32-60
LIGHT EXTRUSION NUTA32-65
END CAPA40-20
THREADED INSERTA33-20
