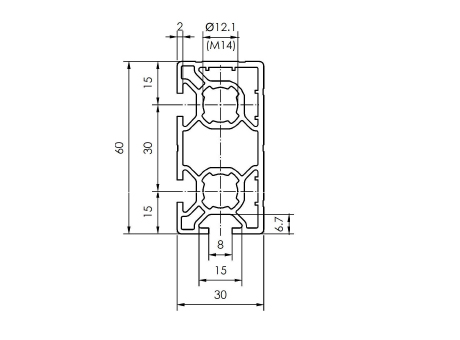

BASE PROFILE 30 mm - CORNER EXTRUSION 30X60 (B02–5) (B02-5)

参考 B02-5-02-02/200

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Corner extrusions are suitable for machine frames, guards, safety partitions and much more.

Reference	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)	截面面积 (cm²)	重量 (kg/m)
B02-5	5.92	21.73	7.24	3.946	2.95	1.6
