BASE PROFILE 40 mm - 80x80x40 L-SHAPED EXTRUSION (C01-6)

参考 C01-6-02-02/200

商品描述

For machine and apparatus frames which have to hold heavy weights and which require strong corner components. They will also be compact and inexpensive.

Kanya - BASE PROFILE 40 mm - 80x80x40 L-SHAPED EXTRUSION

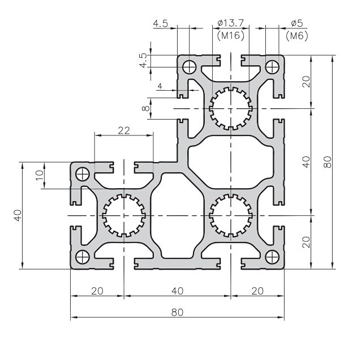

Dimensional Drawing

Product selection

ReferenceIx, y (cm⁴)Wx, y (cm³)截面面积 (cm²)重量 (kg/m)
C01-6109.1823.5619.595.3
More products - DescriptionMore products - Part number
CORNER EXTRUSION 80x80x40 ROUNDC03-6
80x80 BASE EXTRUSIONC01-4
80x80 LIGHTWEIGHT EXTRUSIONC03-4
CORNER EXTRUSION 80x80C03-7
Matching accessories - DescriptionMatching accessories - Part number
CONNECTORC20-90
THREADED PLATEAC32-60
LIGHT EXTRUSION NUTC32-65
THREADED INSERT BASEA33-20
