BASE PROFILE 40 mm - BEAM EXTRUSION 80x120 (MC1-2)

参考 MC1-2-02-02/200

商品描述

A universally useful extrusion with optimum static strength for large gantries and constructions under heavy load.

Kanya - BASE PROFILE 40 mm - BEAM EXTRUSION 80x120

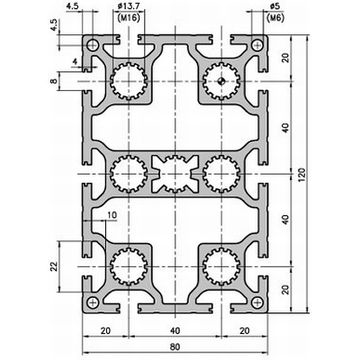

Dimensional Drawing

Product selection

ReferenceIx (cm⁴)Iy (cm⁴)Wx (cm³)Wy (cm³)截面面积 (cm²)重量 (kg/m)
MC1-2451.2219.7675.254.9431.078.4
More products - DescriptionMore products - Part number
80x160 HEAVY DUTY EXTRUSIONMC1-9
Matching accessories - DescriptionMatching accessories - Part number
CONNECTORC20-90
THREADED PLATEAC32-60
LIGHT EXTRUSION NUTC32-65
THREADED INSERT BASEA33-20
