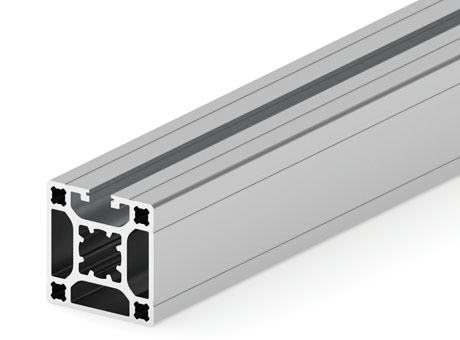

BASE PROFILE 40 mm - TRIPLE FRONT EXTRUSION 40x40 (C04-1)

参考 C04-1-02-02/200

模型复杂程度 High | 模型复杂程度 Low

Delivery

Min length (mm) (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

询价

商品描述

This triple front extrusion is suitable for all types of cladding and for structures where the front extrusion are predominantly closed. It provides an elegant finish.

Catalogue Page (PDF) Extrusion machining information (PDF)

Product selection

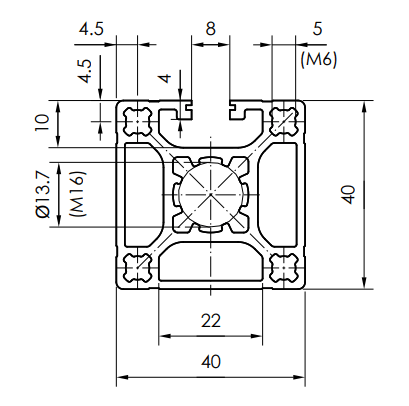

Reference	Ix (cm4)	Iy (cm4)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
C04-1	9.72	9.5	4.86	4.75	5.8	1.56

More products - Description	More products - Part number
FOUR SIDED SOFTLINE EXTRUSION 40x80	C10-3
FOUR SIDED SOFTLINE EXTRUSION 80x80	C10-4

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	C20-90
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	C32-65
END CAP	A40-10
THREADED INSERT BASE	A33-20
BASE PLATE	C47-40
