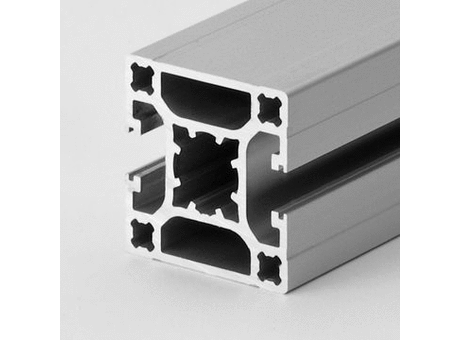

BASE PROFILE 40 mm - 40x40 DOUBLE FACE EXTRUSION (C02-4)

参考 C02-4-02-02/200

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

For all types of enclosure, as well as for structures with extrusion faces which are mainly closed and for applications with an attractive design.

Reference	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)	截面面积 (cm²)	重量 (kg/m)
C02-4	9.56	9.21	4.78	4.6	5.69	1.5

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	C20-90
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	C32-65
END CAP	C40-10
THREADED INSERT BASE	A33-20
BASE PLATE	C47-40
