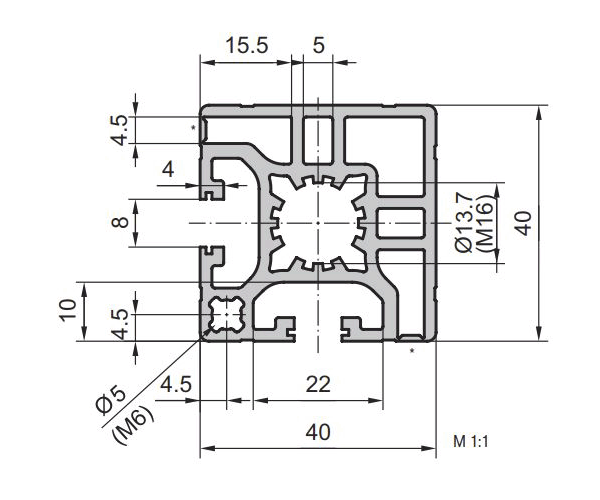

BASE PROFILE 40 mm - CORNER PANEL EXTRUSION 40x40 (C04-7)

Reference Number C04-7-02-02/200

Delivery

Min length (mm)

Standard length

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Send request

Corner panel extrusions have rip off slots. This allows you to insert panels in the face extension.

Catalogue Page (PDF) Extrusion machining information (PDF)

Reference	Ix, y (cm4)	Wx, y (cm³)	Cross-section area (cm²)	Weight (kg/m)
C04-7	9.25	4.58	5.89	1.6

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	C20-90
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	C32-65
END CAP	C40-10
THREADED INSERT BASE	A33-20
BASE PLATE	C47-40
