BASE PROFILE 50 mm - LIGHT EXTRUSION 50x100 (A02-2)

参考 A02-2-02-02/200
Kanya Produkte Detaillierungsgrad 模型复杂程度 High  |  模型复杂程度 Low

商品描述

The new lightweight extrusion is suitable for stable basic constructions and also universally applicable. Additionally the weight versus rigidity ratio is excellent.

Catalogue Page (PDF)Extrusion machining information (PDF)
Kanya - BASE PROFILE 50 mm - LIGHT EXTRUSION 50x100

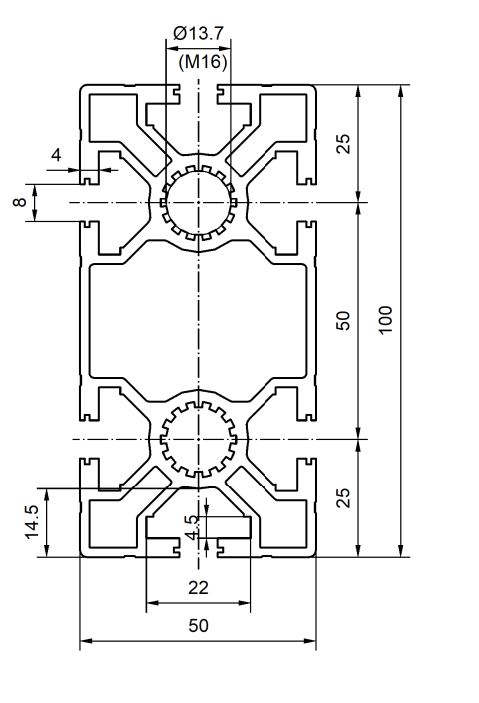

Dimensional Drawing

Product selection

ReferenceIx (m⁴)Iy (m⁴)Wx (cm³)Wy (cm³)截面面积 (mm²)重量 (kg/m)
A02-2148.1537.1529.631514.153.8
More products - DescriptionMore products - Part number
LIGHTWEIGHT EXTRUSION 50x50A02-1
50x100 HEAVY DUTY EXTRUSIONMA1-2
50x100 FACE EXTRUSIONMA1-4
Matching accessories - DescriptionMatching accessories - Part number
THREADED PLATEAC32-60
LIGHT EXTRUSION NUTA32-65
END CAPA40-20
THREADED INSERTA33-20
