SPECIAL EXTRUSIONS - BASE PROFILE 150x150 - MA1-8-02-02/200

Large range of base extrusion, four-sided extrusion, light and heavy extrusion as well as special extrusion. The aluminium extrusions are compatible across all sizes (20, 30, 40, 45, 50) and can also be anodised and powder-coated in the desired colours. The various connectors offer unlimited construction possibilities. A selection of over 1,500 accessories rounds off the extensive range.

To proceed to download, enter your personal data.

Firstname *

Name *

Company *

Address *

Zipcode *

City *

Country *

Phone *

Email *

I acknowledge I have read and I hereby accept the General Terms of Use, including the Privacy Policy under which my Personal Data may be used. *

SPECIAL EXTRUSIONS - BASE PROFILE 150x150 (MA1-8)

Reference Number MA1-8-02-02/200

Kanya Produkte Detaillierungsgrad

Level of Detail: High | Level of Detail: Low

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

Description

The base profile is suitable for long, heavy, self-supporting constructions.

Catalogue Page (PDF)Extrusion machining information (PDF)

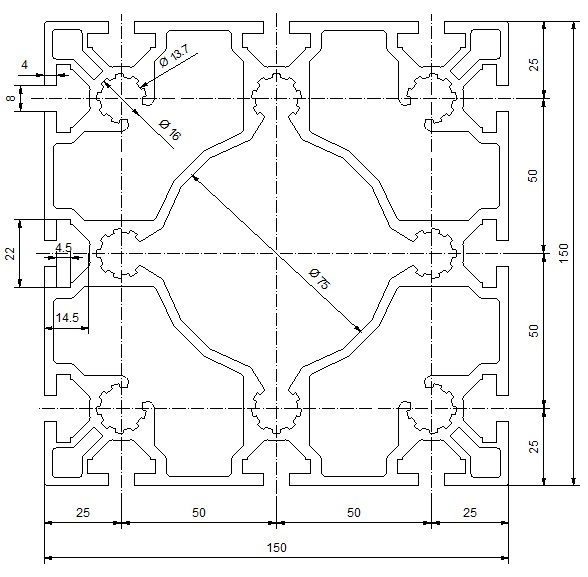

Dimensional drawing

Product selection

Reference	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)	Profile surface (cm²)	Weight (kg/m)
MA1-8	1264.46	1264.46	168.59	168.59	22.08	13.3

More products - Description	More products - Part number
50X150 BEAM EXTRUSION	MA1-3
BEAM EXTRUSION 50X200	MA1-6
100X200 HEAVY DUTY EXTRUSION	MA1-9

Matching accessories - Description	Matching accessories - Part number
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	A32-65
THREADED INSERT	A33-20
