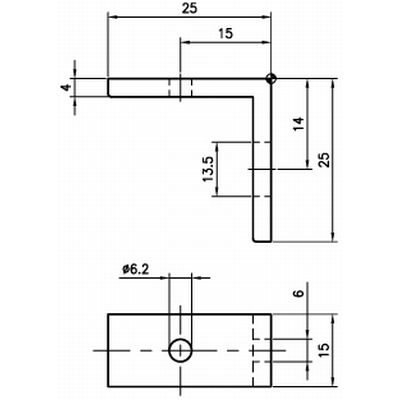

ATTACHMENT BRACKET 25x25x15 (B30-56)
The fixing angle is used to mount additional equipment, panelling, worktops, valves, electrical switchgear, etc. The advantage of these is that they are slotted on one side, allowing fine adjustment.
|B30-56||ATTACHMENT BRACKET 25x25x15||25||25||15||15||6,2||M6||14||4||13,5x6|
