CLAMPING PLATE M6 (C32-69)
Description
The extrusion nut is recommended for securing heavy components with high tightening torques. Extrusion nuts are inserted before assembly into the end of the extrusion slots.
Product selection

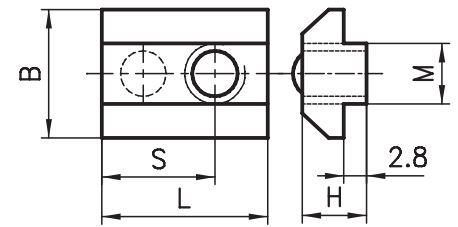

| Part Number | Description | B | H | L | Ø | M | S | T |
|---|---|---|---|---|---|---|---|---|
| C32-69 | CLAMPING PLATE M6 | 17 | 8 | 25 | 6,5 | M6 | 15 | 19 |
