MOUNTING BRACKET 60x60x30 (A30-13)

Reference Number A30-13

Description

The mounting bracket and dowel are used in any application where the extrusions are subjected to torsion but must not twist. A safe extrusion connection. The brackets can be attached with A/B 35-20 T-bolts or using A/B 32-... threaded plates and screws.

Kanya - MOUNTING BRACKET 60x60x30

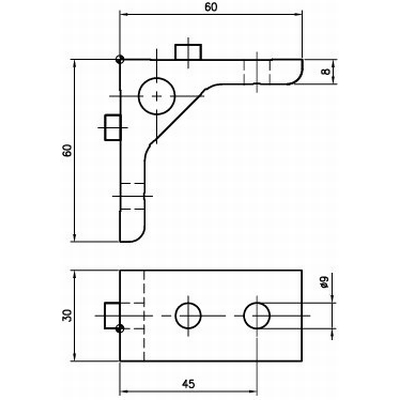

Dimensional drawing

Product selection

Part NumberDescriptionBø
A30-13MOUNTING BRACKET 60x60x30309
