Extrusion Connecting System

To proceed to download, enter your personal data.

EXTRUSION NUT M6 (A32-63)

Reference Number A32-63

Description

The extrusion nut is recommended for securing heavy components with high tightening torques. Extrusion nuts are inserted before assembly into the end of the extrusion slots.

Kanya - EXTRUSION NUT M6

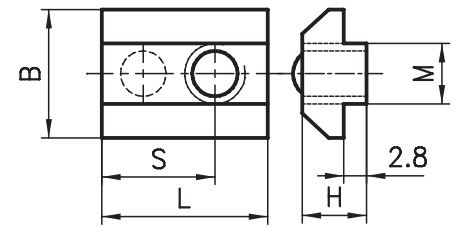

Dimensional drawing

Product selection

Part NumberDescriptionBHLMS
A32-63EXTRUSION NUT M61812,225M615
