SHAFT CLAMPING BOCK (L16-60)

Reference Number L16-60

Description

A high-precision linear bearing system can be created very easily with the components, i.e. the shaft clamping block, the linear bearing block and the steel shaft. As there are two different shaft clamping blocks, the system can be assembled flexibly. The

Kanya - SHAFT CLAMPING BOCK

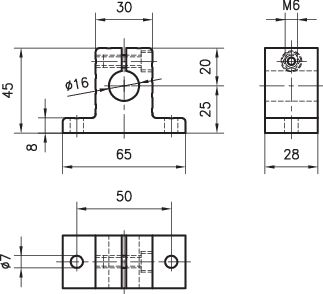

Dimensional drawing

Product selection

Part NumberDescription
L16-60SHAFT CLAMPING BOCK
