FLOOR BOLTING BRACKET (B47-00)

Reference Number B47-00

Description

A floor bolting bracket is used when a system has been aligned and has to be bolted to the floor.

Kanya - FLOOR BOLTING BRACKET

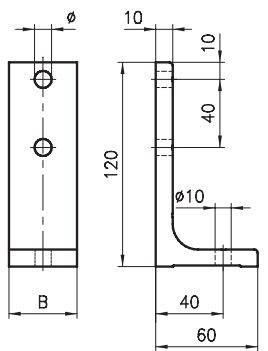

Dimensional drawing

Product selection

Part NumberDescriptionBØ
B47-00FLOOR BOLTING BRACKET306,5
