MOUNTING BRACKETS 85x85x30 (E30-30)

Reference Number E30-30

Description

The bracket is aligned in the centre distances for base 45. The elegant support arch permits good access for tightening the bolts.

Kanya - MOUNTING BRACKETS 85x85x30

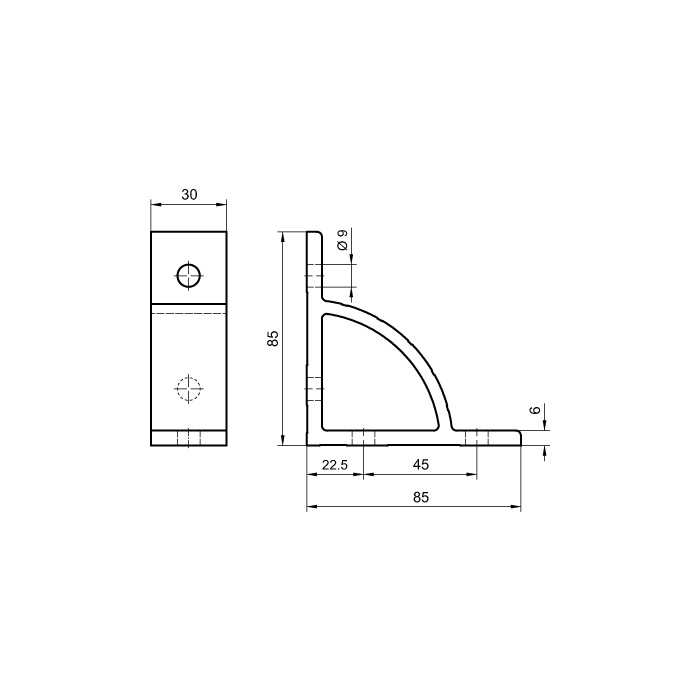

Dimensional Drawing

Product selection

Part NumberDescription
E30-30MOUNTING BRACKETS 85x85x30
