FOOT PLATE 90x90 (E80-20)

Reference Number E80-20

Description

For use with extrusions without a central core hole when fixing levelling feet and casters. The fixing kit, containing screws and threading inserts with the article number A80-20-S must bee ordered separately. For use with extrusions without a central co

Kanya - FOOT PLATE 90x90

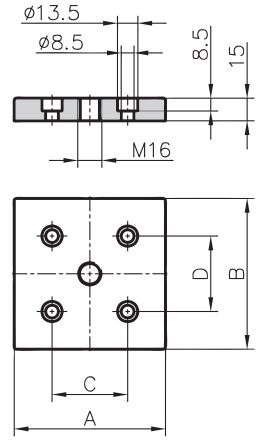

Dimensional Drawing

Product selection

Part NumberDescriptionABCD
E80-20FOOT PLATE 90x9090904545
