BASE PROFILE 30 mm - 30x100 FACE EXTRUSION WITH PANEL SLOTS (B01-2)

Reference Number B01-2-02-02/200

Description

For cross-beams on base frames, conveyor belts, trolleys or for large areas of panelling. This versatile extrusion can also be used in combination with extrusions with a base of 40 or 50 mm. A lightweight, sturdy extrusion which can be connected in many d

Kanya - BASE PROFILE 30 mm - 30x100 FACE EXTRUSION WITH PANEL SLOTS

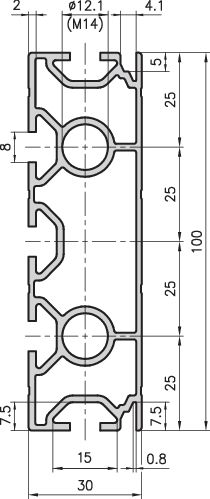

Dimensional Drawing

Product selection

ReferenceIx (cm⁴)Iy (cm⁴)Wx (cm³)Wy (cm³)Cross-section area (cm²)Weight (kg/m)
B01-277.868.7915.575.727.722.1
More products - DescriptionMore products - Part number
60x60 BASE EXTRUSIONB02-6
30x100 BASE EXTRUSIONMB1-2
30x300 FACE EXTRUSIONB03-3
Matching accessories - DescriptionMatching accessories - Part number
CONNECTORB20-90
THREADED PLATEB32-60
LIGHT EXTRUSION NUTB32-65
END CAPB40-20
THREADED INSERT BASEB33-21
