HEAVY LOAD HINGE ALU, TYPE FIX (AC6-30)

Reference Number AC6-30

Kanya Produkte Detaillierungsgrad

Level of Detail: High | Level of Detail: Low

Description

All types of swing doors and windows. The accurately machined hinges are very sturdy, swivel very effectively and last a long time.

Aluminium, matt, anodised in natural colours
Pin: zinc-coated steel

The fixing kit, which consi

Catalog page (PDF)

Kanya - HEAVY LOAD HINGE ALU, TYPE FIX

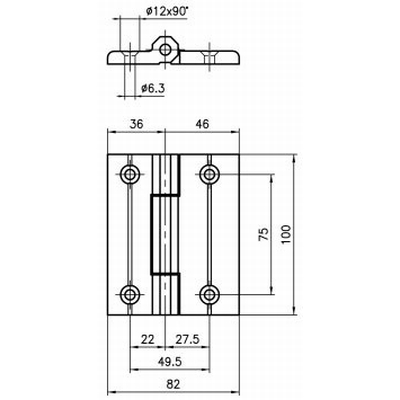

Dimensional drawing

Product selection

Part Number	Description	A	B	C	E	F	D	O
AC6-30	HEAVY LOAD HINGE ALU, TYPE FIX	82	100	49	36	46	75	6,3
